Why Drainage Failures Are the Most Underrated Building Risk
Drainage systems rarely earn attention when a building is new, clean, and structurally sound. They sit quietly behind walls, beneath slabs, and along perimeter edges, moving water away like an unseen circulation system. Yet in South Africa’s increasingly volatile rainfall patterns, drainage failure has become one of the most expensive and least understood threats to built environments.
What makes drainage issues particularly dangerous is not their severity at the moment of failure, but their subtlety. Water does not announce itself with urgency. It infiltrates slowly, accumulates quietly, and expresses damage only after multiple structural layers have already been compromised. By the time visible signs appear, the building has often already absorbed months or years of progressive deterioration.
In construction and maintenance contexts across South Africa, drainage is frequently treated as a secondary concern. Roofing, finishes, and structural framing tend to dominate budgets and inspection routines. Drainage, meanwhile, is assumed to “take care of itself.” That assumption is where risk begins.
Water as a Multi-Layer Structural Intruder
Water is not a surface-level threat. It behaves more like a persistent negotiator, working its way through every available pathway in a building system. Once it bypasses the first barrier, it rarely stops.
In South African conditions, this becomes even more critical. Heavy summer storms, sudden downpours, and prolonged wet seasons in regions such as KwaZulu-Natal and the Highveld place significant pressure on both external and internal drainage systems. When these systems are poorly designed or inadequately maintained, water finds alternative routes that were never intended to carry load or moisture.
The result is a chain reaction across multiple structural layers:
Moisture penetrates roof assemblies and migrates into insulation materials. It then reaches ceiling voids where it can remain trapped for extended periods. From there, it moves into wall cavities, weakening plaster adhesion and encouraging mould growth. In more severe cases, it reaches structural members and foundation zones, where long-term saturation begins to compromise stability.
What makes this particularly deceptive is that each layer masks the failure of the previous one. A stained ceiling may be mistaken for a roofing defect when in reality the source is a blocked external drain or a misdirected downpipe. By the time the true origin is traced, secondary damage has often exceeded the cost of initial prevention.
External Drainage Systems and Their Exposure to Environment

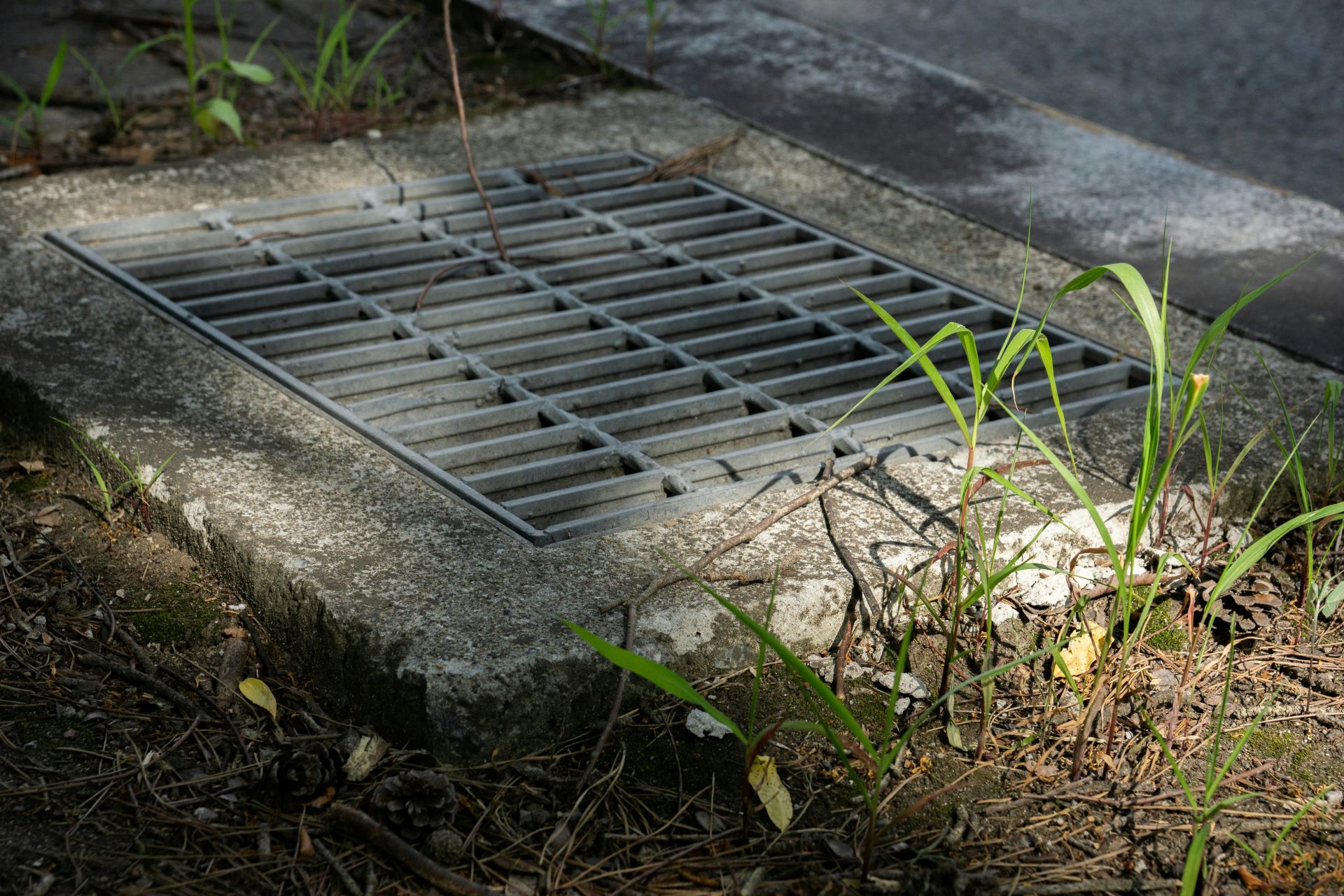

External drainage systems are the first line of defence against surface water intrusion. They include gutters, downpipes, stormwater channels, surface grading, and site-level water diversion infrastructure. In theory, they are designed to intercept water before it reaches the building envelope.
In practice, they are often the most neglected components in a construction lifecycle.
South African buildings are exposed to a wide range of environmental stressors that directly impact external drainage performance. Wind-driven debris, seasonal leaf fall, silt accumulation, and informal landscaping changes can all obstruct flow paths. Even minor blockages can cause overflow conditions that redirect water toward foundations or external walls.
Gutter systems, for example, are frequently undersized or installed without sufficient slope. This leads to stagnant water pockets that accelerate corrosion and reduce flow capacity. Downpipes may discharge too close to the building perimeter, saturating soil zones that were never designed for prolonged moisture exposure.
Surface grading is another critical factor often overlooked during construction. A slope that appears adequate at completion may settle unevenly over time due to soil compaction or erosion. This subtle shift is enough to reverse intended drainage direction, pulling water toward structures instead of away from them.
In many South African residential and commercial properties, external drainage systems are treated as static installations rather than dynamic systems that require ongoing adjustment. This misunderstanding is one of the primary reasons drainage failures escalate over time.
Internal Drainage Systems and Hidden Infrastructure Risk
While external systems deal with surface water, internal drainage systems manage water within the building envelope itself. This includes plumbing networks, floor drains, waterproofed wet areas, internal sumps, and concealed pipework embedded within slabs and walls.
Internal drainage failures are particularly dangerous because they are largely invisible until damage becomes advanced.
A small leak within a slab, for example, can persist for months without detection. Water migrates horizontally through capillary action, spreading beneath flooring systems and weakening adhesives and screeds. In multi-storey buildings, leaks from upper floors may manifest far from their actual source, complicating diagnosis and increasing repair costs.
In commercial buildings, internal drainage systems are often integrated with mechanical systems such as HVAC condensate lines and fire suppression infrastructure. This interconnection increases complexity and raises the stakes of failure. A blockage in one subsystem can affect multiple building functions simultaneously.
Load shedding and intermittent power supply issues in South Africa add another layer of risk where pump-driven drainage systems are involved. Basement drainage pits and stormwater pumping systems rely on continuous operation. When power interruptions occur, even short-term backups may be insufficient to prevent overflow during heavy rainfall events.
Internal drainage is also heavily influenced by workmanship quality. Poor sealing around pipe penetrations, incorrect pipe gradients, and inadequate testing during commissioning stages all contribute to long-term vulnerability. These issues rarely present immediate symptoms, but they establish failure pathways that activate under stress conditions.
The Interface Between External and Internal Systems
The most critical drainage failures rarely originate in isolation. They occur at the interface between external and internal systems, where responsibilities blur and design assumptions overlap.
A common example is the transition between roof drainage and stormwater discharge. Roof water is collected externally but often routed into underground systems that connect to municipal stormwater networks. If any section of this chain is undersized or obstructed, backup pressure can force water in unintended directions.
Another interface risk exists at foundation level. External stormwater systems are intended to divert water away from building perimeters, but internal waterproofing systems are expected to resist any residual moisture. When external systems underperform, internal systems are forced to compensate beyond their design capacity.
This creates a condition where both systems appear functional individually, yet fail collectively under real-world rainfall conditions.
In South African construction environments, where cost constraints often influence design decisions, these interface zones are frequently under-engineered. The assumption is that each system will perform within ideal parameters. Unfortunately, drainage systems rarely operate under ideal conditions.
Soil Behaviour and Its Influence on Drainage Performance
Drainage design cannot be separated from soil behaviour. In many parts of South Africa, soil composition plays a decisive role in how water is absorbed, retained, and transmitted.
Clay-rich soils, common in several inland regions, exhibit high expansion and contraction properties. When saturated, they swell and reduce permeability. When dry, they shrink and crack, creating unpredictable pathways for water movement. This cyclical behaviour places continuous stress on foundation drainage systems.
Sandy soils, while more permeable, can lead to rapid water transmission that overwhelms downstream drainage infrastructure. In coastal regions, the combination of sandy soils and high water tables introduces additional complexity, particularly for basement and substructure design.
Expansive soils are particularly problematic because they interact directly with foundation systems. As soil moisture levels fluctuate, structural movement occurs. This movement can misalign drainage gradients, crack waterproofing membranes, and create new entry points for water infiltration.
A drainage system designed without soil context is effectively operating blind. It may function under initial conditions but will degrade as environmental variables shift over time.
Construction Quality and the Hidden Cost of Compromise
Drainage systems are highly sensitive to installation quality. Unlike structural concrete or steel framing, where minor deviations may be tolerated within engineering margins, drainage systems depend on precision gradients, continuous sealing, and uninterrupted flow paths.
Small compromises during construction often lead to disproportionate long-term consequences.
A slightly reversed pipe slope can create standing water zones. A poorly sealed joint can allow slow seepage into surrounding materials. An incorrectly positioned outlet can redirect stormwater toward vulnerable areas of the site.
In South African construction environments, where time pressures and cost constraints are common, drainage systems are sometimes treated as secondary installation tasks. This increases the likelihood of shortcuts during execution.
The true cost of these compromises is not immediate. It accumulates gradually in the form of repair cycles, maintenance escalation, and structural remediation. By the time intervention becomes unavoidable, the cost of correction often exceeds the original construction savings many times over.
Maintenance Neglect and the Illusion of Functionality
One of the most dangerous aspects of drainage systems is their ability to appear functional even when partially compromised.
Water will continue to move through a system even when efficiency is reduced. This creates an illusion of performance that masks underlying degradation. A gutter that still drains, albeit slowly, may still be considered “working” until overflow damage becomes visible. A subsoil drain that partially functions may still be assumed adequate until foundation dampness appears.
In South Africa, where maintenance budgets are often deferred in both residential and commercial sectors, this illusion contributes significantly to long-term structural risk.
Routine inspection is often the missing link. Drainage systems require seasonal evaluation, particularly before and after high rainfall periods. This includes clearing external blockages, checking slope integrity, testing internal flow rates, and inspecting waterproofing junctions.
Without this ongoing attention, even well-designed systems gradually lose effectiveness.
Storm Intensity and Changing Climate Patterns
Recent shifts in rainfall intensity across South Africa have placed additional pressure on drainage infrastructure. Storm events are becoming more concentrated, delivering higher volumes of water in shorter periods of time.
This creates peak load conditions that many existing drainage systems were never designed to handle.
Urban environments are particularly affected due to increased surface sealing. Roads, pavements, and paved developments reduce natural absorption, increasing runoff volume and speed. This places greater demand on municipal stormwater systems, which in turn affects private property drainage performance.
When municipal systems become overwhelmed, backflow conditions can occur, pushing water into private drainage networks. Without adequate backflow prevention mechanisms, buildings become vulnerable even if internal systems are well maintained.
Climate variability has effectively reduced the margin for error in drainage design. Systems that were once adequate are now operating closer to failure thresholds.
Structural Consequences of Prolonged Water Exposure
Once water penetrates beyond surface-level systems, structural consequences begin to compound.
Concrete, while durable, is not immune to long-term saturation. Water ingress can lead to reinforcement corrosion, especially when chloride presence is high. As steel reinforcement corrodes, it expands, creating internal pressure that leads to cracking and spalling.
In masonry structures, prolonged moisture exposure weakens mortar bonds and reduces load distribution efficiency. Timber elements, where present, become susceptible to rot and biological degradation.
Finishing systems are often the first visible indicators. Paint blistering, plaster detachment, and mould formation are surface expressions of deeper systemic issues.
The critical concern is that structural damage caused by drainage failure is often misdiagnosed. Repairs may target symptoms rather than root causes, allowing underlying water pathways to remain active.
The Economics of Prevention Versus Repair
Drainage systems represent one of the clearest cases in construction where prevention is significantly more cost-effective than remediation.
Preventative investment includes proper design, adequate material specification, correct installation practices, and routine maintenance protocols. These costs are predictable and distributed over time.
Repair costs, on the other hand, are often concentrated and reactive. They include structural drying, material replacement, waterproofing reinstatement, and sometimes partial reconstruction of affected building elements.
In South African property markets, drainage-related defects can also impact asset value. Persistent damp issues reduce tenant confidence in commercial properties and can affect insurance assessments.
The economic argument is therefore not marginal. It is structural. Buildings that ignore drainage considerations at design and maintenance stages accumulate hidden liabilities that surface unpredictably.
Designing for Resilience in South African Conditions
A resilient drainage strategy in South Africa must account for variability rather than ideal conditions.
This means designing systems that can handle peak storm events, accommodate soil movement, and maintain performance under intermittent maintenance conditions.
External systems should prioritise redundancy and overflow management. Internal systems should include accessible inspection points and clear flow hierarchies. Interfaces between systems should be engineered with conservative capacity assumptions.
Material selection also plays a role. Corrosion-resistant components, UV-stable materials, and durable waterproofing membranes extend system lifespan under harsh environmental exposure.
Most importantly, drainage should be treated as a core structural system rather than an auxiliary service. It interacts directly with foundations, envelopes, and internal environments, making it integral to building longevity.
The Silent Architecture of Water Management
Drainage systems are often invisible when they succeed and catastrophic when they fail. Their performance is measured not by presence, but by absence of damage.
In South Africa’s evolving climate and construction landscape, drainage has become one of the most critical determinants of building longevity. External systems protect against environmental exposure, while internal systems safeguard structural integrity from within. The boundary between them is where most failures originate.
Understanding drainage as a dynamic, interconnected system rather than a collection of isolated components is essential for long-term asset protection. Buildings that respect this principle tend to endure. Those that ignore it accumulate hidden vulnerabilities that eventually surface in costly and disruptive ways.
Water may be patient, but buildings are not designed to negotiate endlessly with it. The strength of any structure lies not only in what it is built from, but in how effectively it manages the water that surrounds and moves through it.
